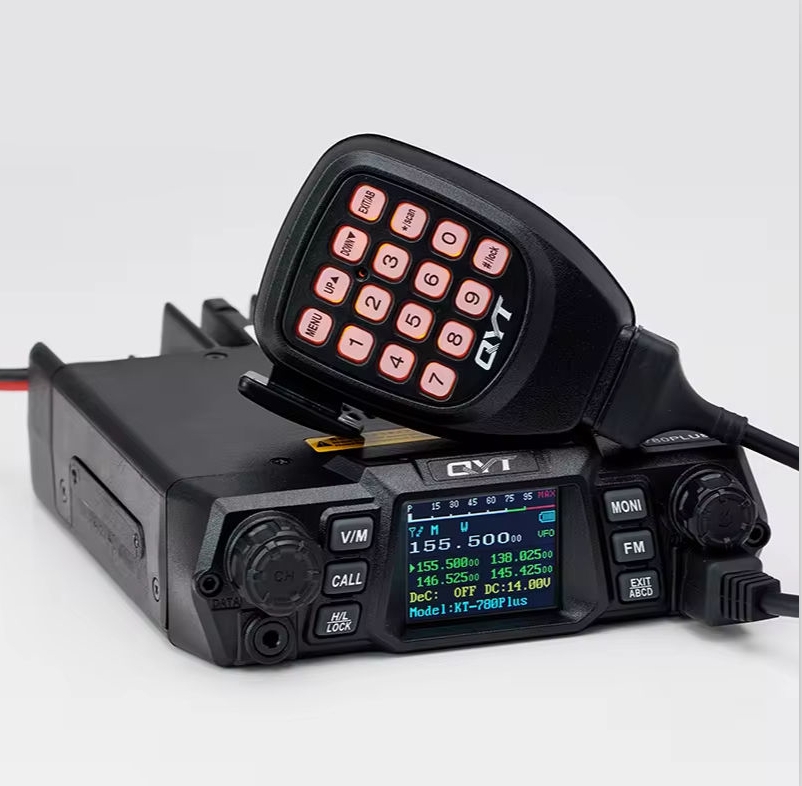

QYT KT-780 PLUS 100W VHF Mobile Radio Transceivers

The QYT KT-780 Plus 100watt radios is a compact,VHF FM mobile radio designed for amateur and commercial use.
Ideal for ham radio operators, off-roaders, and professional users needing a cost-effective, high-performance mobile transceiver.

Description
Inquiry

The QYT KT-780 Plus is a compact, VHF FM mobile radio designed for amateur and commercial use. It supports 75w / 100w output power, 256 channels, and features CTCSS/DCS, monitoring, and PC programmability. Its rugged design, clear LCD display, and wide voltage range make it suitable for vehicles and base stations.

Specification:
Frequency Range	136-174MHz
Number of channels	VHF: 256 Channels
Channel spacing	25KHz/ 20KHz/12.5Khz
Phase lock step step	2.5KHz/5KHz/6.25 KHz/10 KHz/12.5 KHz/25 KHz
Working voltage	13.8V DC±15%
Squelch way	CARRIER/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency stability	±2.5ppm
Operat temperature	-20+60℃
Dimension	140(W)43(H)172(D)mm
Weight	103g
Receive(ETSI EN 300 086 Standarddized.Test)
	Broadband	Narrow Band
Sensitivity	≤0.25μν	≤0.35μν
Channel Cholce	≥70db	≥60db
Intermodulation	≥65db	≥60db
Spurious Rejection	≥70db	≥70db
Audio Response	+1~~3db(0.3~3KHz)	+1~~3db(0.3~2.55KHz)
Signal to noise radio	≥45db	≥40db
Audio Distortion	≤5%
Audio output power	≥2W@10%
Transmit(ETSI EN 300 086 Standarddized.Test)
	Wideband	Narrow Band
Output Power	VHF 75W(15A)/UHF 55W(10A)
Modulation Mode	16KΦF3E	11KΦF3E
Channel Power	≥70db	≥60db
Signal to noise radio	≥45db	≥40db
Parasitic Harmonic	≥60db	≥60db
Audio Response	+1~~3db(0.3~3KHz)	+1~~3db(0.3~2.55KHz)
Audio Distortion	≤5%

Application Scenarios

Key Advantages

Affordable & Powerful – High output power (100W) at a budget-friendly price.
Easy to Program – USB connectivity for quick channel setup via PC.
Reliable Performance – Strong receiver sensitivity (≤0.25μV) and anti-interference features.
Compact & Durable – Lightweight (1.2kg) with a wide operating temperature range (-20°C to +60°C).
Emergency Features – Includes SOS alarm, TOT (Time-Out Timer), and ROGER beep.

Ideal for ham radio operators, off-roaders, and professional users needing a cost-effective, high-performance mobile transceiver.
