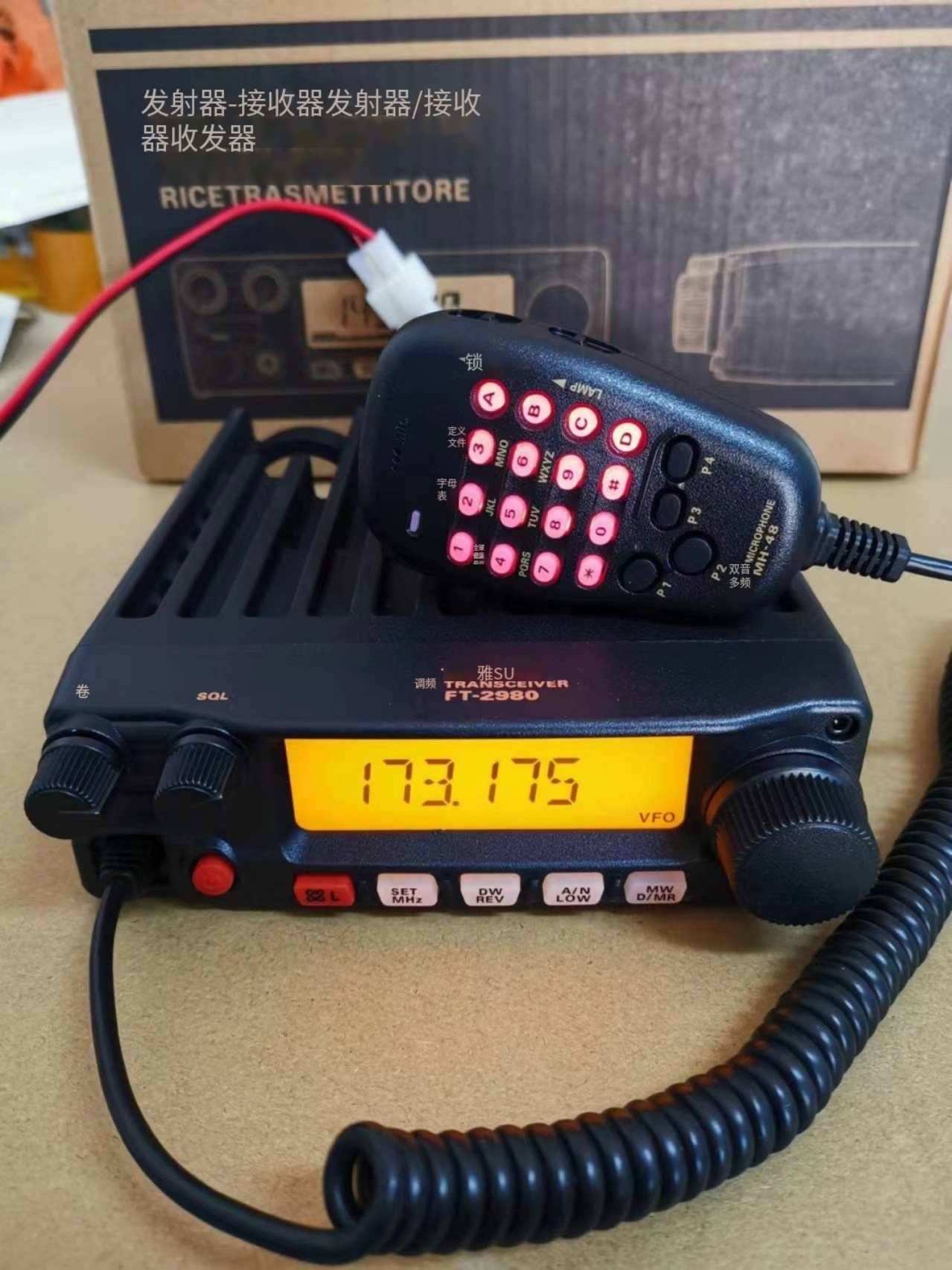

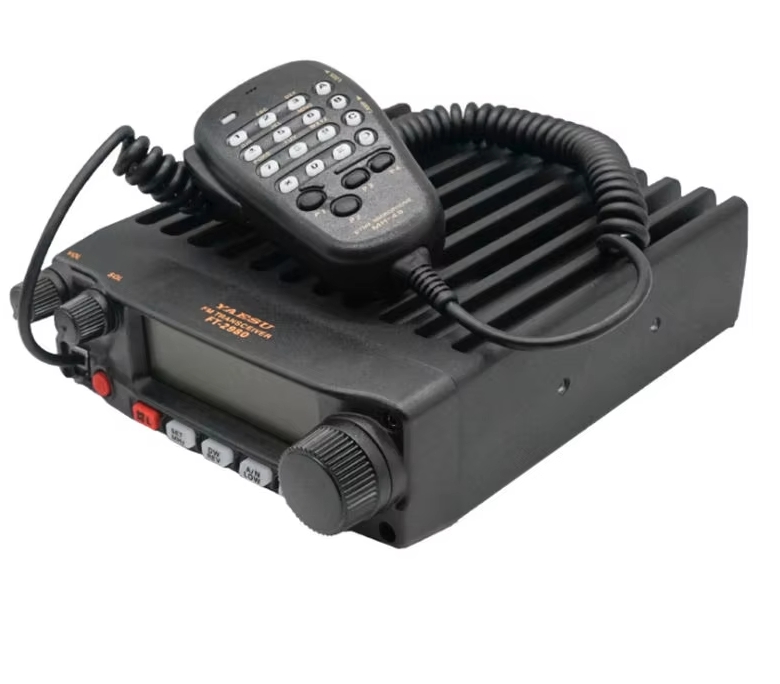

Yaesu FT-2980R Specifications

General

Frequency Range:

Transmit: 144–146 MHz (Amateur Band, varies by region)

Receive: 136–174 MHz (Wideband RX)

Mode: FM (16F3 / 11F3)

Power Output:

High: 80W

Mid: 25W

Low: 5W

Voltage Range: 13.8V DC ±15% (Negative Ground)

Current Consumption:

Transmit: 15A (at 80W)

Receive: 0.5A (Squelched) / 1.2A (Max Audio)

Antenna Impedance: 50Ω (SO-239 Connector)

Receiver Performance

Sensitivity:

0.16 μV (12 dB SINAD, Narrow FM)

0.18 μV (12 dB SINAD, Wide FM)

Selectivity:

70 dB (Wide, ±25 kHz)

60 dB (Narrow, ±12.5 kHz)

Audio Output: 2W (at 10% THD, 4Ω External Speaker)

Transmitter Performance

Modulation: Variable Reactance FM

Maximum Deviation: ±5 kHz (Narrow) / ±2.5 kHz (Wide)

Spurious Suppression: ≥60 dB

Microphone Impedance: 600Ω (4-pin DIN Connector)

Features

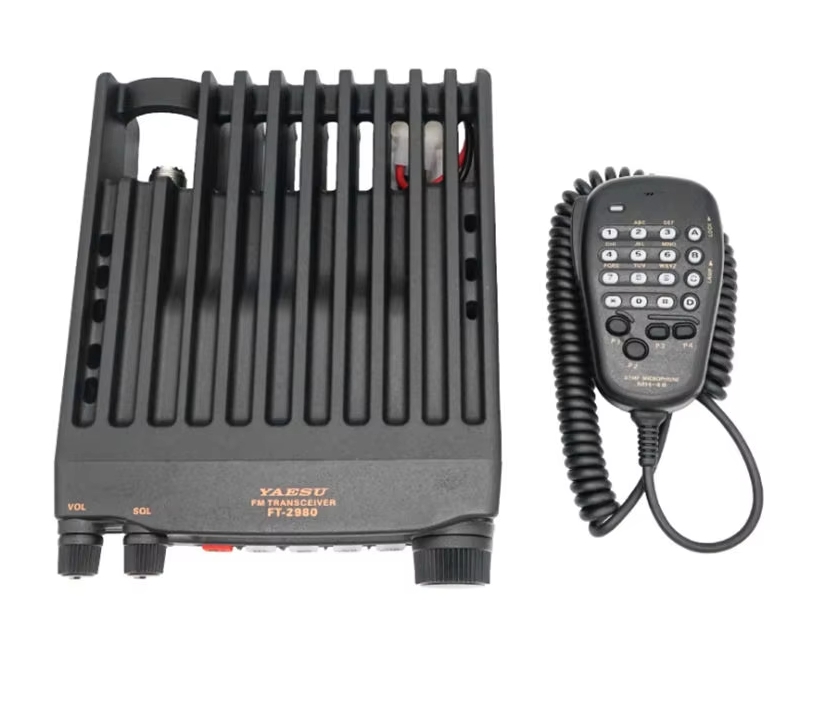

Large Heat Sink: Designed for continuous high-power operation.

Durable Construction: Metal chassis, dust/fan-free design.

Memory Channels: 10 programmable memory channels.

Priority Channel Monitoring: Dual-watch function.

CTCSS/DCS: 50 CTCSS Tones + 104 DCS Codes (Optional)

Time-Out Timer (TOT): Adjustable to prevent over-transmission.

Busy Channel Lockout (BCLO): Prevents TX on occupied frequencies.

Physical

Dimensions (W×H×D): 140 × 40 × 190 mm (5.5 × 1.6 × 7.5 in)

Weight: 1.8 kg (3.96 lbs)

Cooling: Passive (no fan), relies on heavy-duty heat sink.

Included Accessories

MH-48A6J Handheld Microphone

DC Power Cable

Mounting Bracket

Optional Accessories

CT-62 DTMF Mic

FTH-7007 Remote Control Head Kit

P-22 External Speaker

Key Strengths

High Power Output: 80W for extended range.

Simple Operation: No menus—direct front-panel controls.

Reliability: Built for harsh environments (e.g., mobile, base, or emergency use).

The FT-2980R is favored for its durability and straightforward design, making it ideal for VHF FM communication in demanding conditions.
