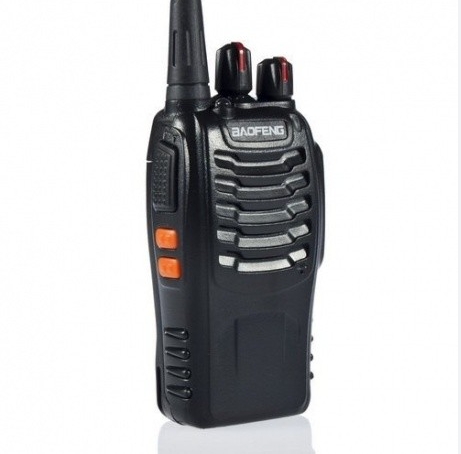

Baofeng BF-888S UHF Two-Way Radio - Technical Specifications

1. General Specifications

• Model: Baofeng BF-888S

• Type: Handheld UHF Transceiver

• Frequency Range: 400-470 MHz (Programmable)

• Channel Capacity: 16 Programmable Channels

• Dimensions: 100 × 52 × 32 mm (Without Antenna)

• Weight: 210 g (With Battery)

• Color Options: Black

2. Transmission Performance

• Output Power:

• High Power: 4W

• Low Power: 1W

• Modulation: FM (16K0F3E)

• Max Frequency Deviation: ±5 kHz

• Spurious Emissions: ≤-65 dB

3. Receiver Performance

• Sensitivity: ≤0.2 µV (12dB SINAD)

• Adjacent Channel Selectivity: ≥60 dB

• Audio Output Power: ≥0.5W (8Ω Load)

• Signal-to-Noise Ratio: ≥40 dB

4. Battery & Power

• Battery Type: 1200mAh Li-ion (7.4V)

• Battery Life:

• 4W Mode: ~8-10 Hours

• Charging Time: ~3-4 Hours (Standard Charger)

5. Key Features

✔ CTCSS/DCS: 50 CTCSS Tones / 104 DCS Codes (Interference Reduction)
✔ VOX (Voice-Activated Transmission): Adjustable Sensitivity (Levels 1-5)
✔ LED Flashlight: Built-in Emergency Light
✔ Channel Scan: Auto-Scanning for Active Frequencies
✔ Low Battery Alert & Time-Out Timer (TOT)

6. Physical Design

• Antenna Connector: SMA-Female

• Display: Backlit LCD (Channel/Frequency)

• IP Rating: IP54 (Dust/Splash Resistant)

• Operating Temperature: -20°C to +60°C

7. Compliance & Use Cases

• Certification: CE, RoHS

• Not FCC Certified (For Amateur/Commercial Use Only)

• Ideal For:

• Small Businesses (Retail, Warehouses)

• Security Teams

• Outdoor Activities (Hiking, Camping)

• Event Staff Coordination

8. Package Contents

• BF-888S Handset ×1

• 1200mAh Li-ion Battery ×1

• Antenna ×1

• Belt Clip ×1

• Desktop Charger ×1

• User Manual ×1

SEO Keywords:
Baofeng BF-888S specs, UHF walkie-talkie, 4W two-way radio, business radio, security communication device.

(A cost-effective solution for short-range professional and recreational use.)
